G190SF01 V0 Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

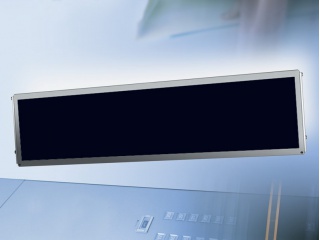

G190SF01 V0 (Alias: G190SF01 V.0) is a 19.0 inch diagonal a-Si TFT-LCD display panel product , with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s2). It's general features are summarized in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Bar Display, Upside I/F, Matte , 1/3 Cut of 22". Based on its features,we recommend that this model be applied to Industrial, Stretched Bar LCD etc.

Technical Data:

Part #：

G190SF01 V0

Brand：

AUO

Size：

19.0 inch"

Resolution：

1680×342

Interface：

19.0 inch

Technology：

Transmissive

Brightness：

300 cd/m2 (Typ.)

Operating Tem：

0 ~ 60 °C

Storage Tem：

-20 ~ 60 °C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
