Transflective TFT LCD
A transflective display is a type of screen that combines both transmissive and reflective technologies to provide visibility in a variety of lighting conditions. It works by using a reflective layer that bounces ambient light back through the display, which allows it to be readable even in bright sunlight. The transmissive part of the display lets light pass through, which is useful in low-light conditions (like indoors or at night).
The main advantages of a transflective display are:
1.Improved Outdoor Visibility: Since the display reflects ambient light, it's much easier to read in bright sunlight compared to traditional transmissive displays, which can be washed out in direct sunlight.

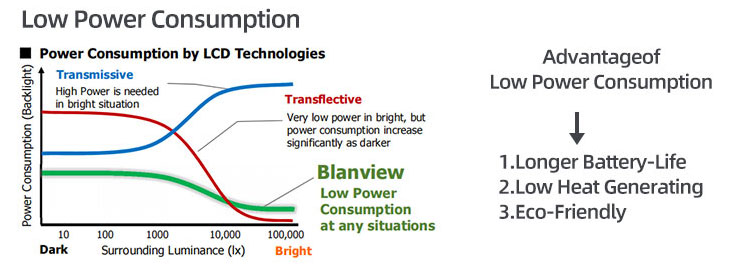

2.Better Battery Life: In bright environments, the display uses less power by reflecting sunlight, rather than relying solely on the backlight to illuminate the screen. This can lead to significant battery savings, especially in devices like smartwatches or handheld outdoor gadgets.
3.Versatility in Various Lighting Conditions: Transflective displays perform well in both bright and dim environments, adjusting to ambient light without the need for manual adjustments or relying heavily on a backlight in low-light conditions.
4.Durability and Readability: They tend to be more durable and provide better readability in challenging lighting conditions, making them ideal for outdoor and industrial applications, where glare or ambient light can be an issue.
5.Lower Power Consumption: When used in bright environments, transflective displays require less power, since they use reflected light. In contrast, purely transmissive displays consume more power due to their backlighting.

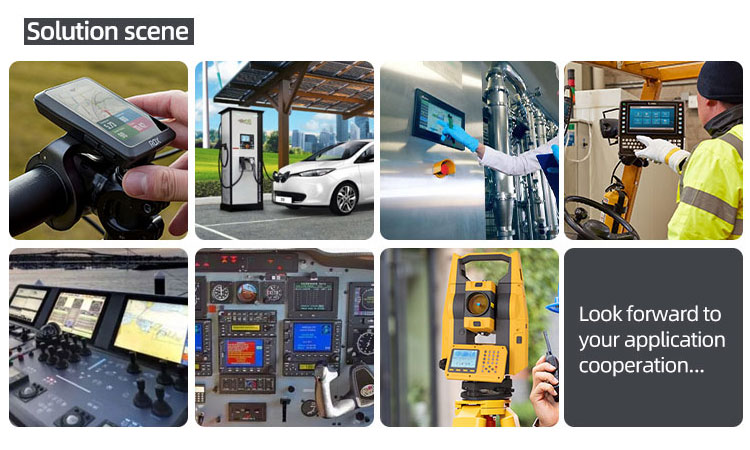

Transflective displays are widely used in applications where devices are used outdoors or in varying lighting conditions. Some common applications include:
1.Smartwatches and Fitness Trackers: Transflective displays are commonly found in wearable devices because they provide excellent outdoor readability without draining the battery quickly. They allow users to check the time, notifications, and fitness stats in direct sunlight.
2.E-readers (like Kindle): Many e-readers use transflective displays, especially those with e-ink technology. The reflective nature of the display makes it easy to read in bright outdoor conditions, much like paper, and helps conserve battery life.
3.GPS Devices: Portable GPS units for hiking, biking, and driving benefit from transflective displays since these devices are often used in bright sunlight, and the screen needs to be clearly visible in those conditions.
4.Outdoor Displays: Transflective technology is useful in public signage and digital billboards where displays need to remain legible in varying lighting conditions, including direct sunlight.
5.Industrial and Military Equipment: Transflective displays are used in rugged, outdoor, or tactical equipment like field radios, handheld scanners, and diagnostic tools, where durability and readability in harsh lighting conditions are critical.
6.Medical Devices: Portable medical equipment, like handheld monitors or diagnostic tools, often uses transflective displays to ensure they remain readable in bright hospital environments or outdoor settings.
7.Cameras and Photography Equipment: Some cameras with outdoor use or high-performance screens use transflective displays to give photographers a clearer view of their settings or previews in bright sunlight.
In all of these applications, the key advantage is maintaining high readability in both bright outdoor conditions and low-light environments, while also improving battery life.

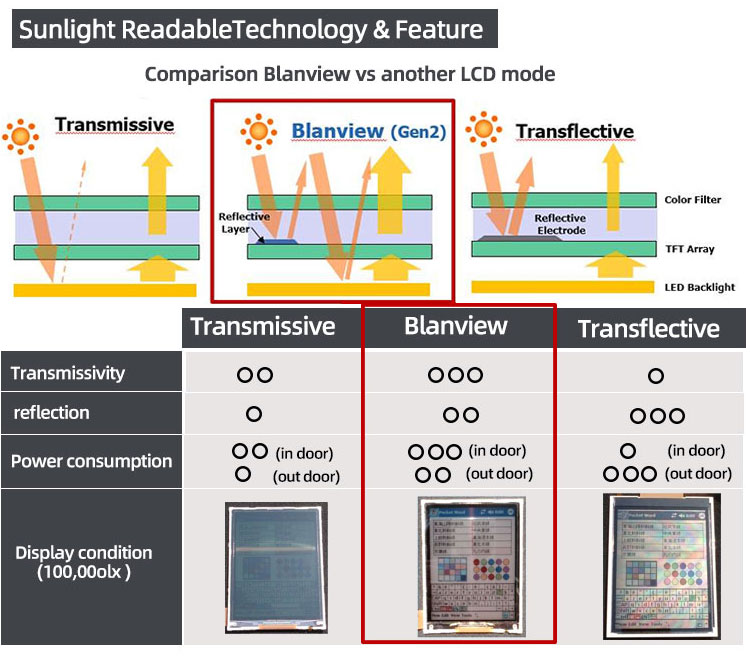

Here's a comparison between transflective displays, high-brightness displays, and reflective displays to highlight their unique characteristics and advantages:
1. Transflective Display:
?Combination of Reflective and Transmissive: Transflective displays combine both reflective and transmissive technologies, allowing the screen to be readable both in bright light (by reflecting ambient light) and in low light (by using backlighting).
?Best for Varied Lighting Conditions: They are ideal for environments with changing lighting conditions, as they adapt to both bright sunlight and dim indoor settings.
?Battery Efficiency: In bright environments, they consume less power because they rely on reflected light. In darker environments, they use a backlight.
?Use Case: Smartwatches, e-readers,outdoor GPS devices,industrial equipment, etc.
?Pros:
Excellent readability in sunlight.
Power-efficient in bright conditions.
Versatile for indoor and outdoor use.
?Cons:
Backlight usage can still drain battery in low-light conditions.
2. High-Brightness Display:
?Focus on Brightness: High-brightness displays are designed to have a much brighter backlight compared to standard displays. They are typically used in environments where there's a lot of ambient light or direct sunlight.
?Visibility in Bright Light: These displays are specifically engineered to be highly visible even in direct sunlight. They do not rely on reflected light like transflective displays but compensate with a powerful backlight.
?Power Consumption: High brightness comes with higher power consumption, especially in bright conditions.
?Use Case: Digital signage, outdoor kiosks, and some high-end displays used in bright environments.
?Pros:
Can be used in environments with intense light or direct sunlight.
Good for outdoor advertising, public displays,etc.
?Cons:
High power consumption.
Still not as power-efficient as transflective displays in sunlight.
3. Reflective Display:
?Uses Ambient Light Only: Reflective displays, like those using e-ink technology, rely entirely on ambient light. There’s no backlight, so they work by reflecting light from the environment, similar to how printed paper works.
?No Power in Bright Light: Since they do not use a backlight, they are extremely power-efficient. They only consume energy when the display content changes (e.g., for e-ink screens).
?Best for Outdoor Use: Reflective displays perform exceptionally well in direct sunlight because they just reflect the sunlight, making them easy to read.
?Use Case: E-readers (like Kindle), some outdoor gadgets, passive digital signage.
?Pros:
Extremely power-efficient.
Best readability in bright sunlight.
?Cons:
Poor visibility in low-light or dark environments (no backlight).
Can be less vibrant or slower for displaying dynamic content.
Summary of Differences:
| Feature |
Transflective Display |
High-Brightness Display |
Reflective Display |
| Backlight |
Yes (uses a backlight in low light) |
Yes (high-intensity backlight) |
No (relies solely on ambient light) |
| Visibility in Sunlight |
Good (reflects ambient light) |
Excellent (very bright backlight) |
Excellent (uses reflected light) |
| Battery Consumption |
Efficient in bright light, uses backlight in dark |
High (due to intense backlighting) |
Extremely efficient (no backlight needed) |
| Best for |
Mixed lighting conditions (outdoor/indoor) |
Outdoor use, bright environments |
Bright outdoor environments,static content |
| Use Cases |
Smartwatches,GPS,industrial devices |
Digital signage,outdoor kiosks |
E-readers,outdoor gadgets,passive signage |
| Power Efficiency |
Good in bright light, moderate in dark |
Low (high power for brightness) |
Very high (no backlight) |
Which to Choose?
Transflective: Best for devices that need to work in both bright and low-light conditions with good power efficiency, like smartwatches and portable devices.
High-Brightness: Ideal for environments where sunlight exposure is constant, and the display needs to be visible at all times (e.g., outdoor kiosks, digital billboards).
Reflective: Perfect for devices like e-readers, where the display is primarily used outdoors in bright sunlight and doesn't require a backlight, offering the highest battery efficiency.
Each type has its place depending on your needs—whether it’s about visibility, battery efficiency, or specific use cases in outdoor or bright environments.
