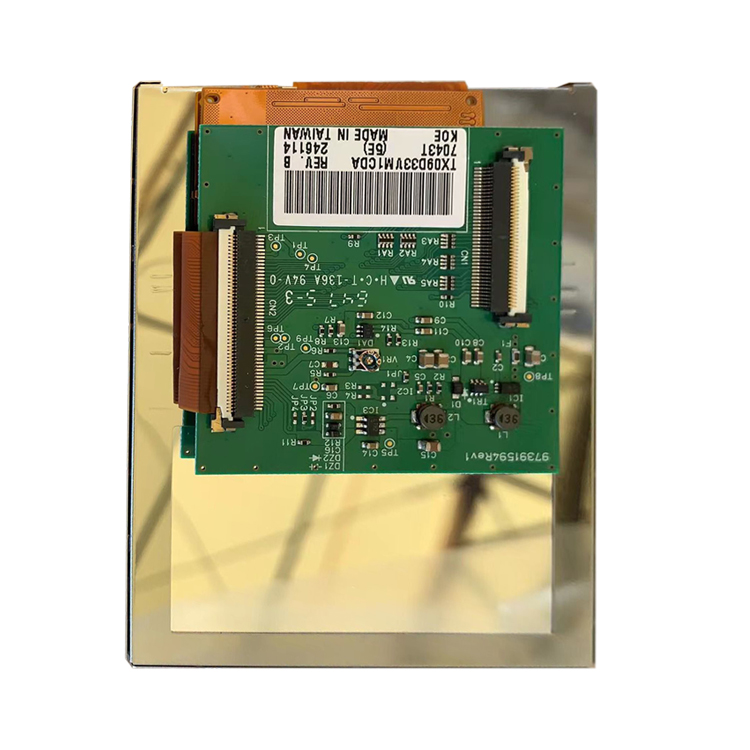

TX09D30VM1CDA Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

TX09D30VM1CDA supports display?240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.64(W)×71.52(H) mm, outline size of 64(W)×86(H)×7(D) mm, viewing area size of 57.64(W)×75.52(H) mm, net weight of 40.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TX09D30VM1CDA can provides 320 cd/m2 display brightness 300:1 transimissive contrast ratio, 70/70/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

Technical Data:

Part #：

TX09D30VM1CDA

Brand：

KOE

Size：

3.5 inch"

Resolution：

240×320

Interface：

3.5 inch

Technology：

Transmissive

Brightness：

320 cd/m2 (Typ.)

Operating Tem：

-30 ~ 80 °C

Storage Tem：

-30 ~ 85 °C
